MediaCity’s dock10 Head of Production – Virtual studios technology explained

Virtual sets

Meanwhile, our in-house team of Virtual Set Developers have been working alongside production companies, creative directors, traditional set designers and lighting directors to create the virtual worlds in which the presenters will deliver the shows. We use the latest 3D modelling packages and real-time renderers to create environments that can be as wild and creative as your imagination will allow; and being computer generated they are not restricted by the physical dimensions of the studio space – The Match of the Day virtual set for example is set in the centre circle of a 60,000-seater football stadium.

However, no matter how large the virtual space we also have to consider any physical objects used within it, such as the presenters’ desks and chairs. We model these along with a 3D version of the green screen walls and floor, so we have a full understanding of the virtual and physical limitations of the camera’s and presenter’s movements. We also build all our sets to work in 360 degrees, opening up the possibility for cameras to shoot in every direction.

Rocket boots

As part of the set design, we also develop augmented objects using computer graphics to alter and enhance what is seen. These might be data driven graphics delivered as 3D text, virtual pyrotechnics, or a huge video wall for VT playback that saves the cost of hiring expensive LED walls. For BBC Bitesize Daily we built a fully automated 3D robot that was driven by a performance artist wearing a motion-capture suit – we even gave him rocket boots so he could fly around the set!

Green screen

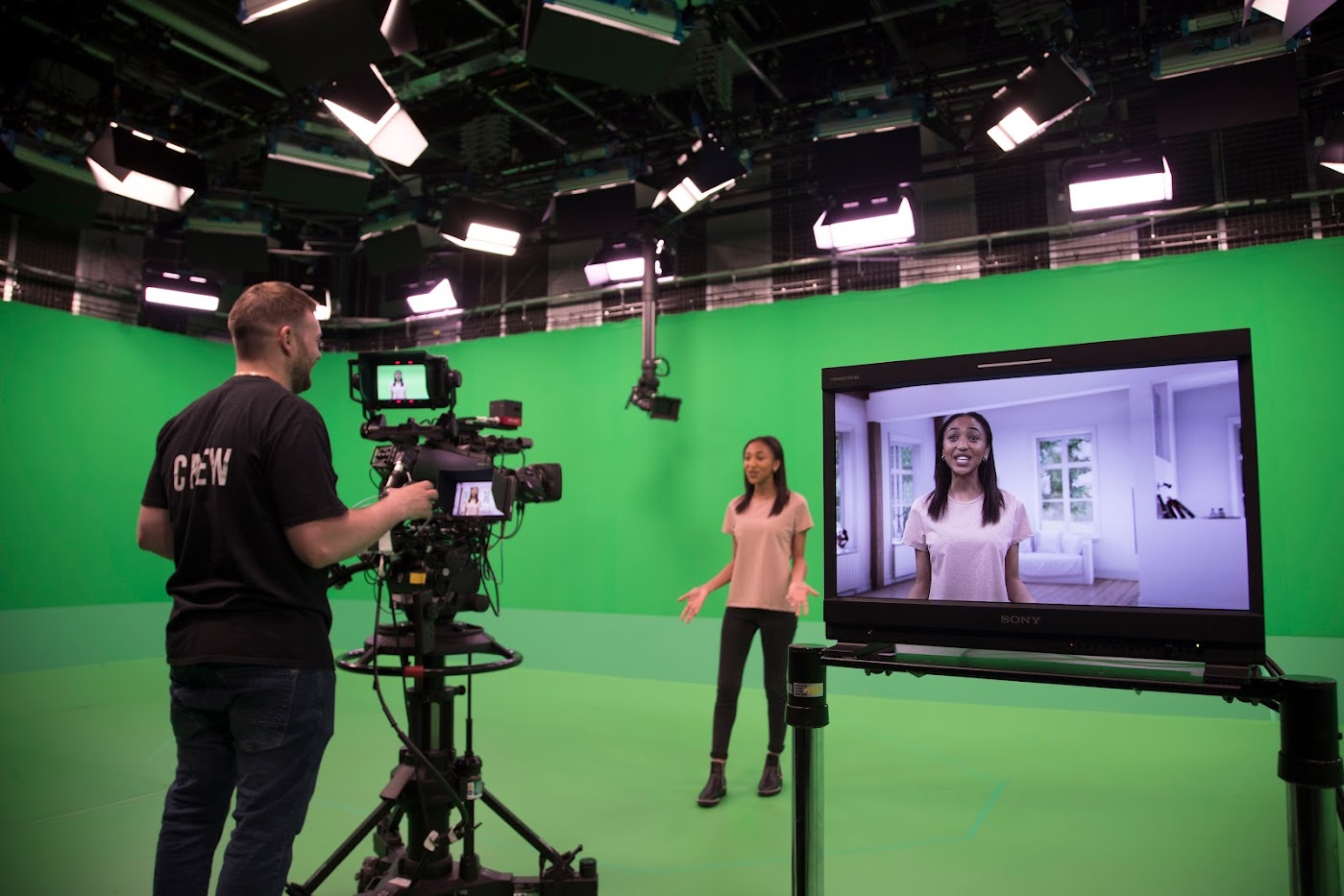

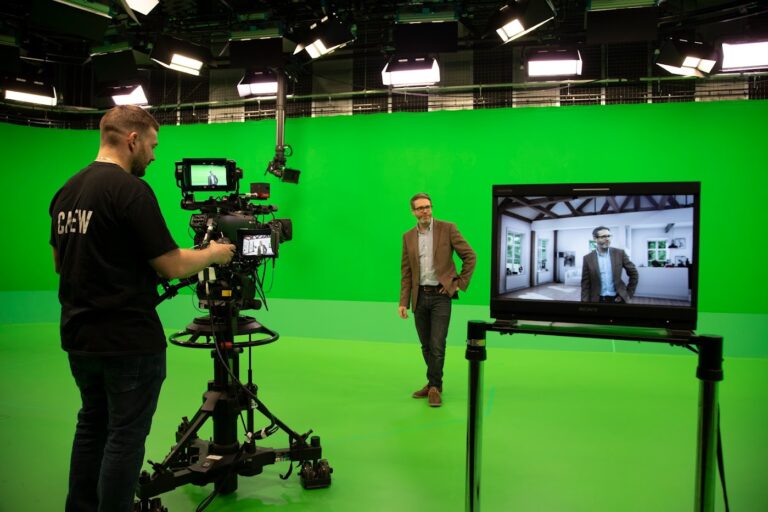

Once we have a studio lit for a green screen production, a set of broadcast cameras all rigged with camera tracking devices, and a three-dimensional set built to run in a real-time renderer – all we need to do is combine these three different elements and run the signals though our broadcast infrastructure. Easy! We start by feeding the broadcast cameras’ tracking data and the virtual environment into a control interface that manages all the video and data signals; this software also allows us to generate the composite (combined) video signal using a keying technique similar to those used in high-end post production. By using a real-time imaged based keyer that runs on GPU processing power, we can produce spectacular results with contact shadows, transparent objects and sub-pixel details like hair. And because each camera is tracking all the other cameras, this allows us to generate dynamic ‘3D masks’ so that the cameras can move around the space – even right next to the presenters – without appearing on the finished broadcast. We can also ‘garbage mask’ areas that aren’t lit or covered in green such as the lighting grid and the ‘fourth wall’ which allows cameras to offer seemingly impossible shots.

Programme making

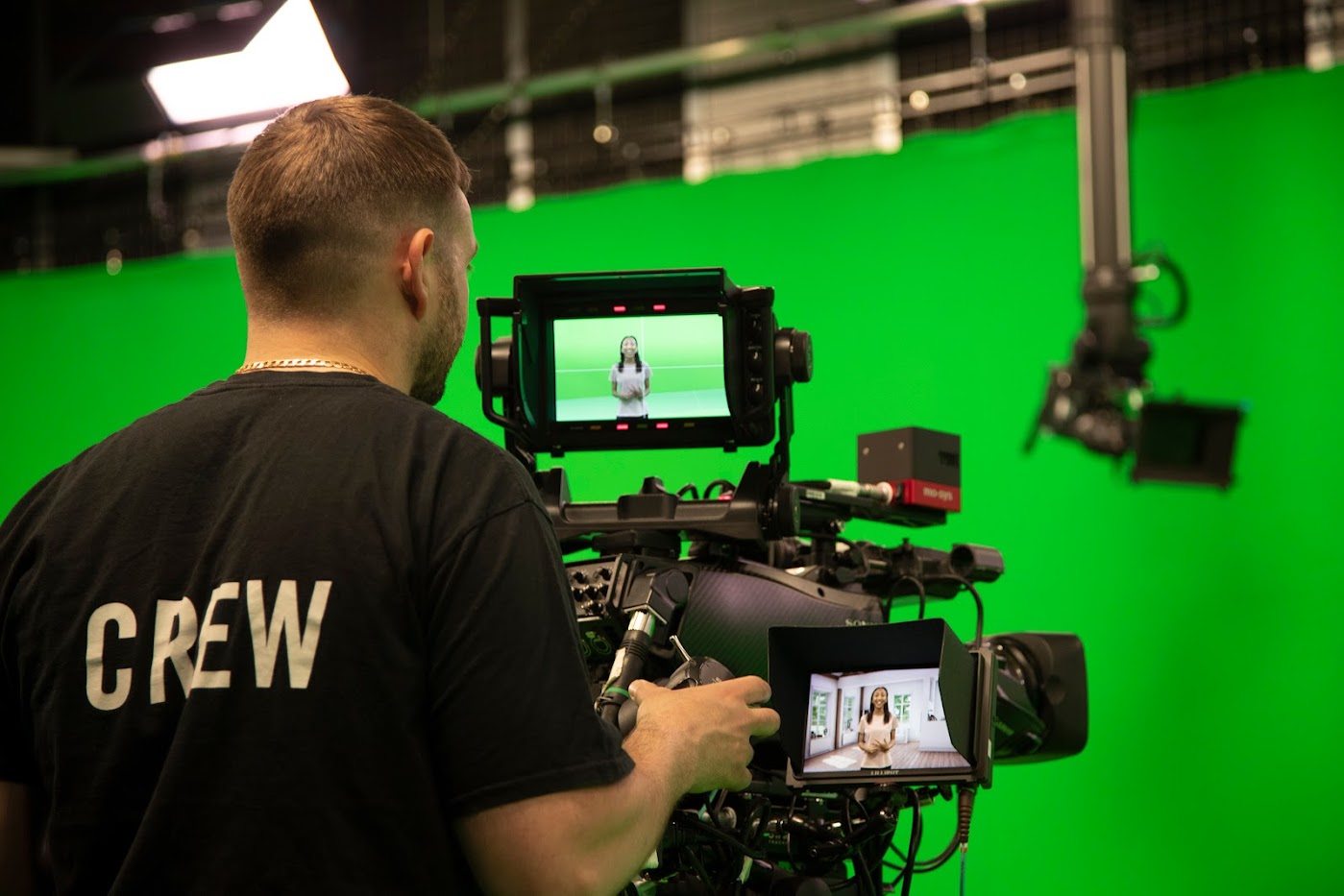

Having achieved all that, it’s now just down to the programme making. The gallery crews have ‘standard’ monitor stacks showing each camera’s composite feed, so for them it’s just like producing and directing a traditional show. The camera operators get a view of both the clean and composite feeds on dual monitors so they can see exactly what’s going on; for the talent, we provide slung and floor monitors showing the output of the vision mixer or specific cameras, as well as eyeline monitors so they still have a visual connection when they need to conduct down-the-line interviews. These small eyeline monitors are often replaced with much larger virtual LED screens. Although it can be a bit daunting at first, we’ve found that most people get used to the set-up very quickly and are soon immersed in the space themselves.

Match of the Day

dock10 was the UK’s first major studio to adopt these next-generation virtual studios technologies and after a year of R&D, training and recruitment we re-launched Match of the Day for the BBC from our first virtual set back in August 2019. Since then, we’ve gone on to produce hundreds of hours of virtual studio content putting the system through its paces and proving its value for taking the viewer experience to new levels. As more and more production companies start to realise the benefits of virtual and augmented production techniques and the cost and environmental saving that these technologies allow, it won’t be a surprise to see more of it hit your screen. The brilliance is though, that you might not notice.
